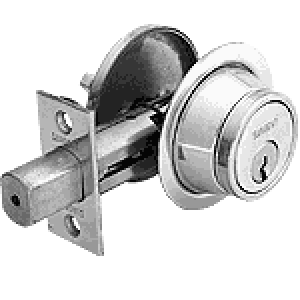

Deadbolt
|
|
|
A medium grade cylindrical deadbolt, which meets Grade 2 ANSI 156.5 1000 series specifications
Features and Benefits:
ˇFits 161 cutout & 160 modified (drill 1 inch hole 3 7/16 inches deep).
ˇDesigned for doors 1 1/2 inch to 2 3/8 inch thick.
ˇMeets ANSI A156.5 1000 Series Grade 2 requirements.
ˇ2 3/8 inch or 2 3/4 inch adjustable backset.
ˇBrass Bolt with hardened steel pin.
ˇBrass, 6 pin cylinder.
ˇCan be masterkeyed with other Sargent locks, construction key systems available.
ˇNon handed.
ˇStamped brass strike 2 1/4 inch by 1 inch wide with filler for 1 1/8 inch wide.
ˇ406 strike standard.
|
|
|
|
|
|
|
