Mortise locks
|
|
|

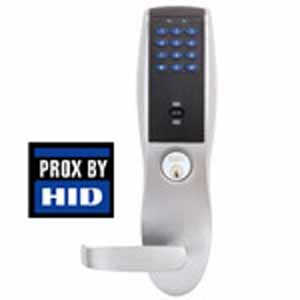

The Profile Series is Sargent`s latest advancement in stand-alone access control with architecturally pleasing escutcheons and various finishes. Depending on the technology selected, the Profile Series offers 500 user (LU-Keypad Only, PA-Proximity Only & PK-Keypad & Proximity) with audit trail (last 1000 events) capability. `Users` can be programmed to actuate the cylindrical lock via pin code and/or proximity credential. The proximity credential offerings include: proximity cards, key fobs and MicroProx Tags. The Profile Series locks (LU, PA and PK versions) are programmed and managed using SofLink Plus w/ Soflink PDP access control software. This software offers the ability to transfer `door file` information directly from the PC or by using commercially purchased PDA (consult factory for compatible models).
Ideally suited for:
·High Security Applications
·Dormitories
·Assisted Living Facilities
·Hospitals
·Retail Buildings
·Meeting Rooms
·Company Health Clubs
·Apartments
·Office Complexes
·Stairwell Doors
Features and Benefits:
·Keypad easily programmable for some features on LU and PK products
·Soflink Plus Software required for programming proximity only (PA), keypad (LU, and keypad/proximity (PK) where time zones are required
·Non-volitile memory
·For use on exterior doors with weather-seal gasket
·500 different user codes
·1,000 event transaction history-unlock, egress activation, entry into programming mode, date, time, user number and door number downloaded via Computer or PDA
·One master code-assigns emergency, supervisory and user codes
·One supervisory code-allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, .
adds user codes and unlocks when beyond `low battery` condition
One emergency code-allows entry when deadbolt is thrown
·One time user codes-allows `one time` entry
·Maintained (passage) code-unlock for extended periods of time
·Low battery input indication-four chirps after code entry. Supervisory code unlocks unit beyond low battery condition
·LED`s on unit indicate status-green indicates unlocked; yellow indicates programming mode.
|
|
|
|
|
|
|
