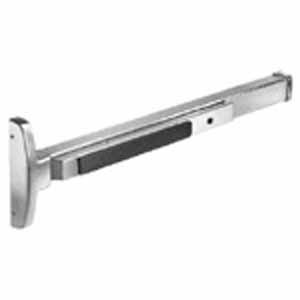

The 12-MD8400 fire rated concealed vertical rod exit device is for metal doors only and has an aesthetically pleasing narrow stile design.
The 12-MD8400 Narrow CVR Exit Device is ideally suited for:
·Full-glass pairs of doors
·Aluminum or HM entrances
·Aesthetic applications
Features and Benefits:
·High impact resistant Lexan touchpad on rail assembly
·Maximum 3 in. (77mm) projection, minimum 2 1/8 in. (54mm) push side
·All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT products
·High security Keso, V10 and Signature Series available
·Rail assemblies and end caps are Brass, Bronze or Stainless Steel
·Stainless steel springs throughout
·Chassis mounted unit construction for easy installation and service.
·Simple lever principle with push type action
·Rail travels in direction of door swing
·Trim is thru bolted
·Electric functions available. Consult Product System Manual
·All exit devices meet ANSI standard 156.3, Grade 1
·All exit devices are UL Listed
·UL Listed to Canadian safety standards
|
|
|
|
|
|
|
