CCTV
|
|
|

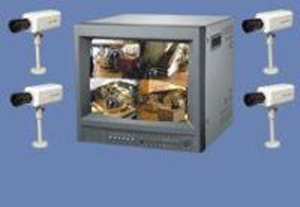

Pvs-2/4-color cctv system with built-in switcher and quad splitter, four varifocal color cameras
· Cctv system features four 3.5-8mm varifocal color cameras,
· 14' color monitor with built-in sequential switcher, which minimizes the number of components and connections required for set-up.
· The provideo advantage allows for the addition of any cctv camera to these systems using rear bnc inputs!
· Each system camera has a built-in miniature microphone and 2-way communications speaker.
· A sixty ft. cable and camera mount also included for each camera.
all monitors have an alarm input and output via rear terminal strip. Additional b/w (pvs-camb) and color (pvs-camc) cameras are available for the expansion of the cctv system.
Technical specifications:
-camera type
-four color ccd cameras
-camera-minimum illumination
-1.0 lux per camera
-camera resolution
-350 lines per camera
-camera-electronic shutter speed
-auto 1/60-1/100,000 seconds
-camera lens
-3.5-8mm varifocal lens with manual iris per camera
-camera-power supply
-cameras are powered by the monitor
-switcher
-automatic sequential switcher-override for homing or bypass-sequencing time adjustable from 0.50 to 30 seconds
monitor type
-14 inch monitor-450 lines resolution-din and bnc input and output-ul listed-up front controls-ir remote control included
|
|
|
|
|
|
|
