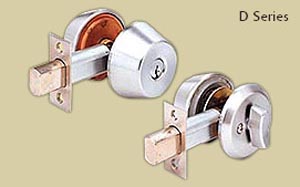

Deadbolt
|
|
|
Housing:
Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
Deadbolt:
1' (25.40 mm), solid steel deadbolt throw with hardened steel pin.
Backset:
2-3/8' (60.32 mm), 2-3/4' (69.85 mm).
Deadbolt fronts:
2-1/4' (57.15 mm) x 1' (25.40 mm) standard for 2-3/8' (60.32 mm) backset, 2-1/4' (57.15 mm) x 1-1/8' (28.57 mm) standard for 2-3/4' (69.85 mm) backset. Drive-in deadbolts are available.
Doors:
1-3/8' (34.925 mm) to 1-3/4' (44.45 mm) thick standard.
strikes:
Supplied standard with two strikes. #345-security strike for steel frame. #346-security strike for wood frame.
Handing:
All functions are reversible.
Cylinder, Standard:
Solid brass, Arrow “A” keyway, drilled for 6 pins, pinned to 5. Supplied with two keys.
Cylinder Options:
Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores. ASSA high security cylinders are available.
Finish:
US3, US4, US5A, US10, US10B, US26, US26D.
|
|
|
|
|
|
|
